The operating principle of the automatic temperature-controlled oil press is similar to that of a traditional single-screw oil press: both utilize mechanical force to squeeze oil from the oilseed, effectively preserving the oil's natural flavor and nutrients. To operate, the automatic temperature control system is activated to heat the press to the desired temperature. The oilseed is then transferred from the hopper to the pressing chamber. The rotating screw pushes the oilseed inward, extracting the oil, which then flows out through the oil outlet. Multiple pressing operations are possible to obtain a higher yield of oil or reduce the residual oil content in the meal.
Our company offers a variety of automatic temperature-controlled oil press models, suitable for edible oil processing plants of different sizes. The following are some of the models and their parameters:
| model | Production capacity (tons/24 hours) | Residual oil rate of cake (%) | Pressing screw speed (r/min) | Power (kw) | Overall dimensions (mm height × width × depth) | Weight (kg) | Temperature control power (kw) | picture |
|---|---|---|---|---|---|---|---|---|

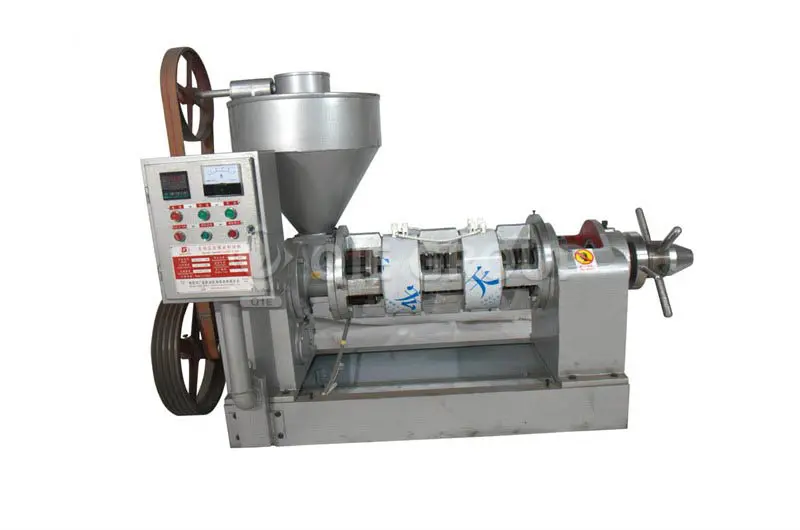

| YZYX10WK | ≥3.5 | ≤7.8 | 26 - 36 | 7.5 | 1620×580×1165 | 570 | 2.65 |  |

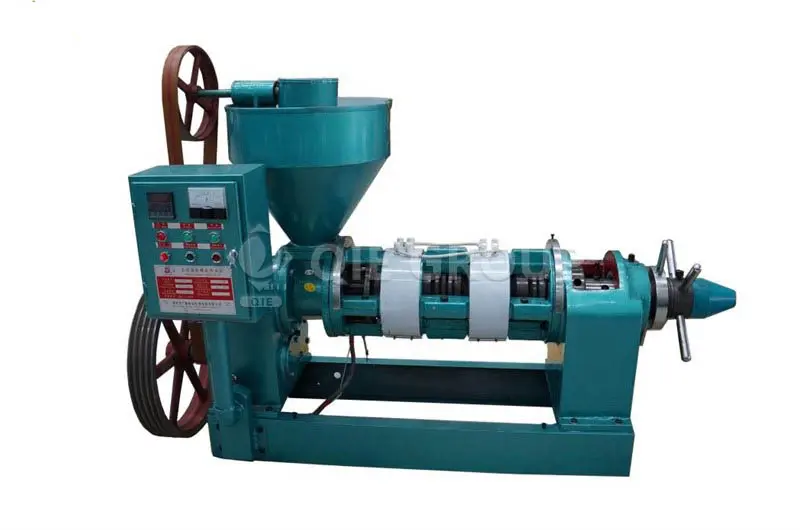

| YZYX120WK | ≥6.5 | ≤7.6 | 32~41 | 15 | 1860×622×1275 | 700 | 3.6 |  |

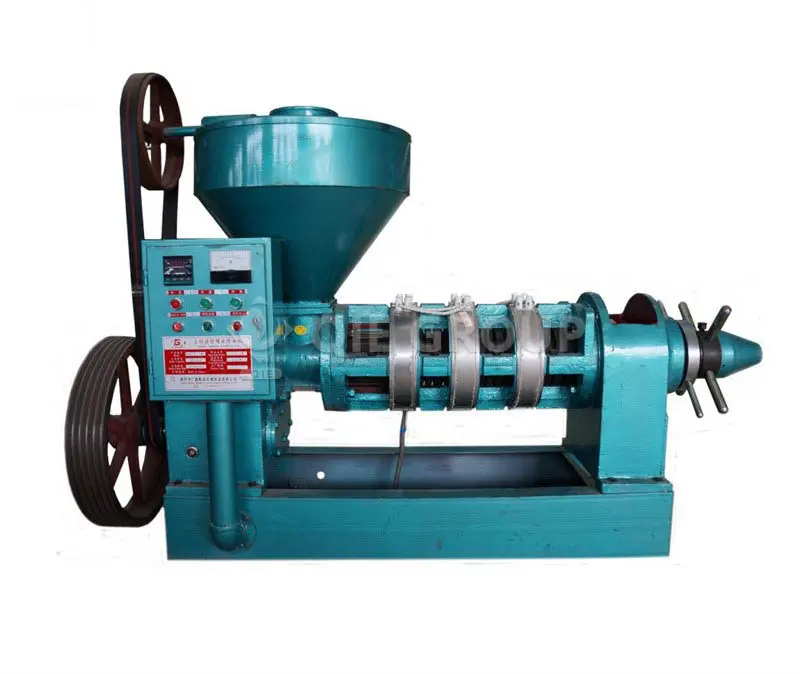

| YZYX130WK | 8 - 10 | ≤7.6 | 32~44 | 18.5 | 1950×742×1500 | 900 | 3.6 |  |

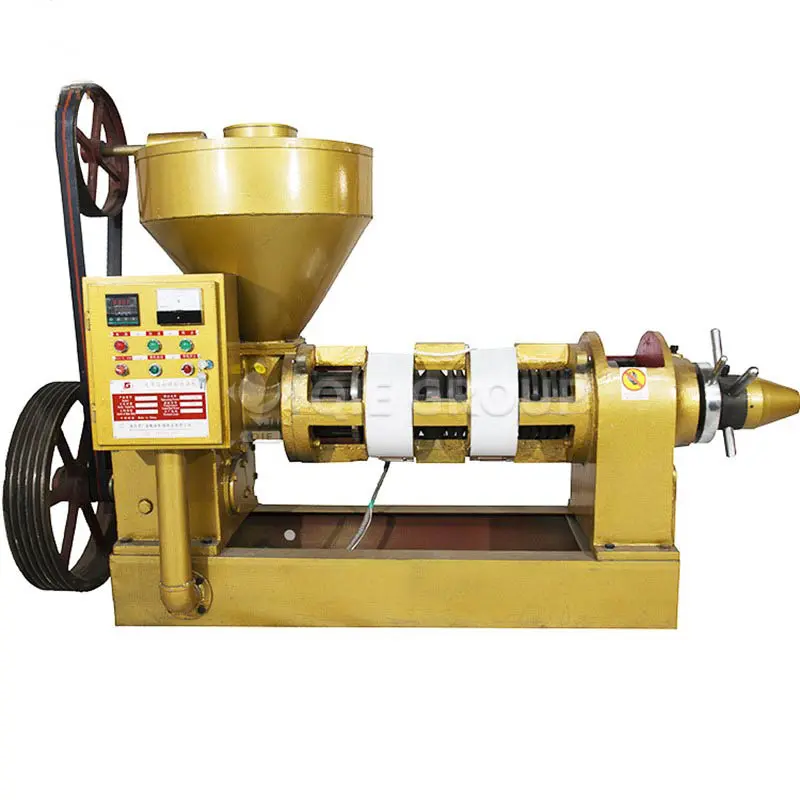

| YZYX140WK | 9~11 | ≤7.6 | 28~38 | 18.5 | 2010×690×1430 | 830 | 3.6 |  |
Precise temperature control and stable performance
The automatic temperature control function allows the pressing chamber to maintain a constant temperature when the pressing process is interrupted, ensuring the consistency of the pressing effect and providing you with stable product quality.
Wide application and flexible processing
It can be widely used to press peanuts, rapeseeds, sunflower seeds, soybeans and other oilseeds to meet the processing needs of different raw materials, making your production more flexible and diverse.
Low cost and easy to maintain
Low investment cost, small footprint, simple operation and maintenance, saving a lot of manpower and material resources and reducing your operating costs.
Excellent quality and durability
Made of high-quality materials, it is highly safe and reliable, has a long service life, and provides long-term and stable protection for your production.
Choosing a good oil press means choosing a long-term and stable guarantee for your oil factory.
QIE GROUP not only provides you with high-quality automatic temperature-controlled oil presses , but also provides you with installation and commissioning, operation training, technical guidance and full after-sales service , so that you can purchase the machine without worry and produce more worry-free.
👉 Contact us now to get a personalized solution and the latest quotation that suits your factory size!
Seize the market opportunity and start with an efficient and reliable automatic temperature-controlled oil press to make your oil mill profitable faster!
