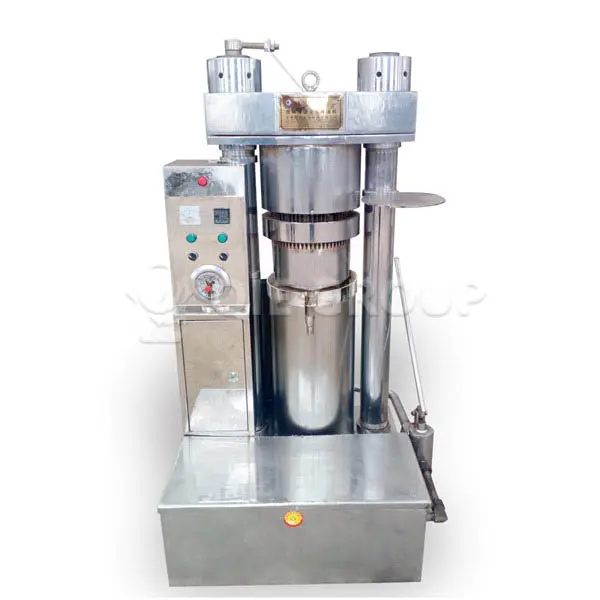

The hydraulic sesame oil press machine utilizes advanced hydraulic transmission technology to compress sesame seeds through a high-pressure cylinder, extracting the oil from the sesame seeds. The entire process requires no chemical additives, fully preserving the natural flavor and nutritional value of sesame oil. Its operating principle is simple and efficient, and consists of the following steps:
Raw material preparation : Clean the selected sesame seeds to remove impurities and dust.
Pressing : The cleaned sesame seeds are sent into the pressing chamber, and pressure is applied by the high-pressure oil cylinder to squeeze out the oil in the sesame seeds.
Filtration : The squeezed sesame oil is filtered to remove impurities and residues in the oil to obtain pure sesame oil.
| model | Maximum working pressure (MPa) | Processing capacity (kg/h) | Motor power (kw) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 6YY-230 | 50 | 35–50 | 1.5 | 900×850×1550 | 1000 |
| 6YY-260 | 55 | 45–70 | 2.2 | 1050×950×1650 | 1200 |
| 6YY-300 | 60 | 32–75 | 2.2 / 4.0 | 1000×1100×1660 | 1600 |
✅Cold pressed at low temperature to retain nutrients
The whole process temperature is ≤60℃ to avoid protein denaturation
Clear color, retaining amber original pulp
The retention rate of aroma substances increased by 32%
✅Fully automatic and intelligent, more efficient
One-touch opening and closing lid, automatic pressure relief
One person can manage multiple devices, reducing labor costs
✅High quality oil yield
There is no high temperature damage during the oil pressing process, and the oil is clear and transparent
Complete nutritional ingredients, rich in unsaturated fatty acids and vitamin E
✅Applicable to multiple raw materials
In addition to sesame, it can also squeeze peanuts, walnuts, almonds and other oils
✅Environmentally friendly and safe
No pollution, no noise, in line with food processing safety standards
Equipped with safety protection devices to ensure the safety of operators

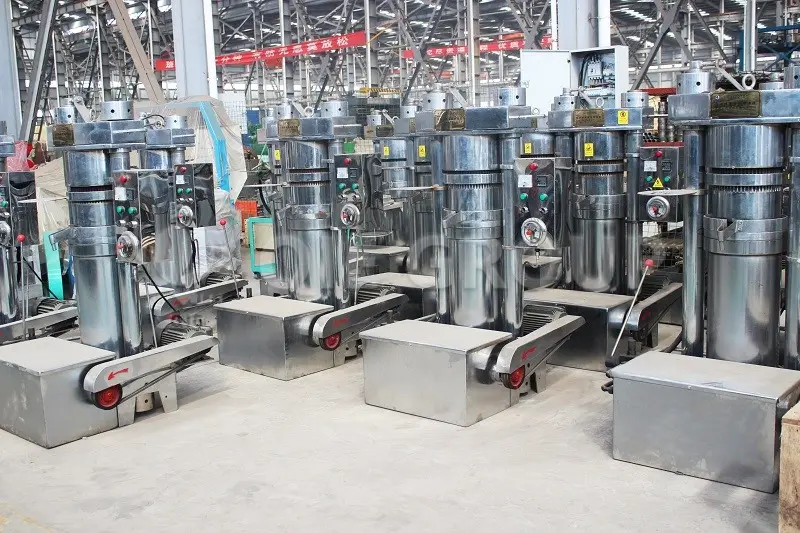

Hydraulic sesame oil press machines are widely used in edible oil processing plants of all sizes, from small workshops to large enterprises. For example, the fully automatic hydraulic sesame oil pressing line provided by QIE Group is suitable for large-scale production, while smaller oil mills may choose more flexible equipment.
If you're looking for an efficient, high-quality, and durable hydraulic sesame oil press machine, our product is the perfect choice. It will deliver higher yields, better quality, and greater profits for your edible oil processing plant. Contact us today to start a new era in sesame oil production!
