A large-scale screw oil press is a highly efficient edible oil pressing machine that squeezes the oil through the rotating screw shaft, achieving efficient oil extraction. The machine primarily consists of a feed inlet, screw shaft, pressing chamber, and oil outlet. After pretreatment, the oil enters the pressing chamber, where it is gradually compressed by the screw shaft. After separation, the oil is discharged through the oil outlet, achieving continuous, highly efficient production.
| model | production capacity | Cake residual oil rate | Power matching | Overall dimensions (length × width × height) | weight | picture |
|---|---|---|---|---|---|---|
| ZY24(202-3) | 40~50 T/D | 10~18% | 30KW | 2900×1850×3640mm | 5500kg |  |
| ZX276 | 50-60 T/D | 6-8% | 75kW | 3705×1040×2800mm | 10000kg |  |

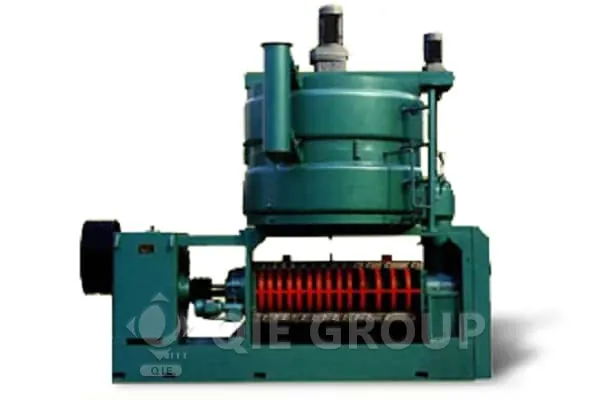

| ZX32 | 90-100 T/D | 8-10% | 90+11+5.5 kW | 4100×2270×3850mm | 11000kg |  |
| ZY28 | 120-150 T/D | 16-20% | 75+11+4.0 kW | 3740×1920×3843 mm | 9160kg |  |
| ZY32 | 220-260 T/D | 16%-2% | 110+11+5.5KW | 4100×2270×3850mm | 11000kg |  |
High output : The daily processing capacity can reach tens to hundreds of tons, meeting the production needs of large oil plants.
Low energy consumption : Advanced energy-saving technology significantly reduces operating costs.
Low residual oil rate : The oil content of the oil cake is extremely low, maximizing the oil extraction rate.
Continuous operation : supports long-term continuous production, reduces downtime and improves efficiency.
Strong adaptability : suitable for a variety of oil crops, such as soybeans, rapeseed, peanuts, sunflower seeds, and cotton seeds.
Applicable factory types : medium and large oil plants, refineries, and cooperatives can all use it.
After-sales guarantee : 1-year warranty and lifetime technical support.
Optional accessories : heating system, automatic control system, etc., can be customized as needed.
Successful Cases : Many oil mills reported a significant increase in oil extraction rates.
If you are interested in large screw oil presses or other edible oil processing equipment , please feel free to contact us. Let's make your oil plant efficient and cost-effective, starting with a large screw oil press! We will provide detailed product information and customized solutions.
