Designed specifically for small and medium-sized edible oil processing plants, this oil press combines efficient screw pressing technology, automatic temperature control, and vacuum filtration , enabling complete raw material pressing and oil filtration within a single unit. The integrated design saves space and is easy to operate, making it easy for even beginners to master.
Automatic temperature control
Built-in sensors and heating devices can intelligently adjust the temperature of the pressing chamber, optimize oil extraction conditions, increase oil yield and reduce energy consumption.
Screw pressing technology
The high-strength stainless steel spiral shaft applies uniform pressure to effectively break the oilseed cell walls to release oil, while supporting continuous feeding and slag discharge to improve efficiency.
Vacuum filtration system
Equipped with a high-performance vacuum pump and multi-stage filter to remove impurities and residues, ensure the purity of the oil, extend the shelf life and improve the quality of the final oil.
Easy to operate
Integrated process: adding materials → automatic temperature control pressing → vacuum filtration → oil extraction, easy to use, no complicated operations required.
| model | Production capacity (tons/24 hours) | Residual oil rate of cake (%) | Screw shaft speed (r/min) | Main motor power (kw) | Filter power (kw) | Temperature control power (kw) | Dimensions (mm) (length x width x height) | Weight (kg) | picture |
|---|---|---|---|---|---|---|---|---|---|

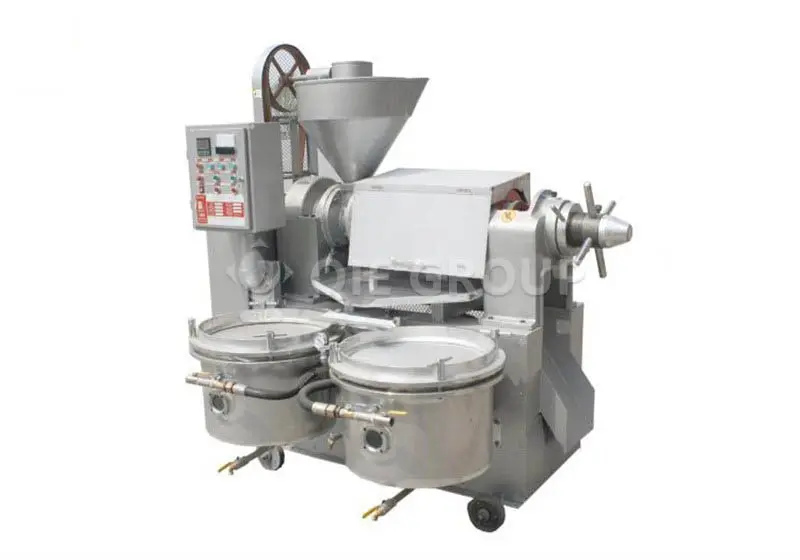

| YZYX90WZ | ≥3 | ≤8.0 | 32~40 | 7.5 or 11 | 1.1 | 2.65 | 1718×1450×1735 | 973 |  |

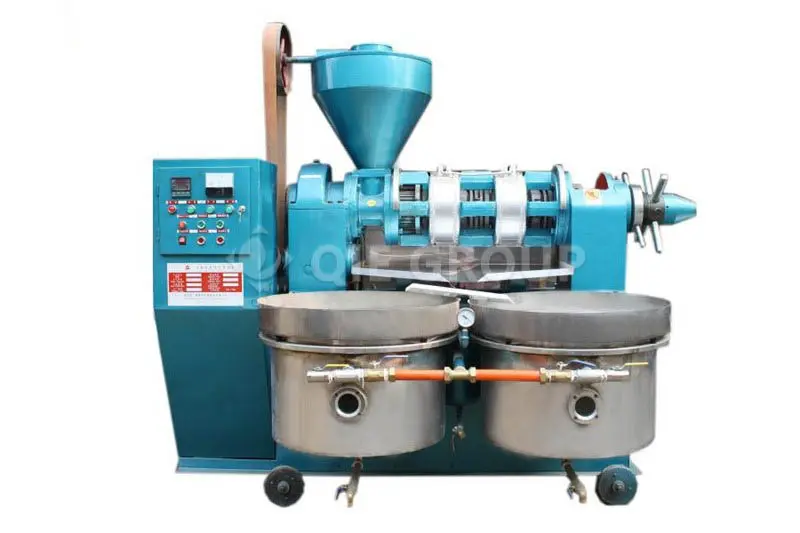

| YZYX120WZ | ≥6.5 | ≤6.0 | 32~42 | 11 | 1.1 | 3.6 | 2120×1350×1890 | 1080 |  |

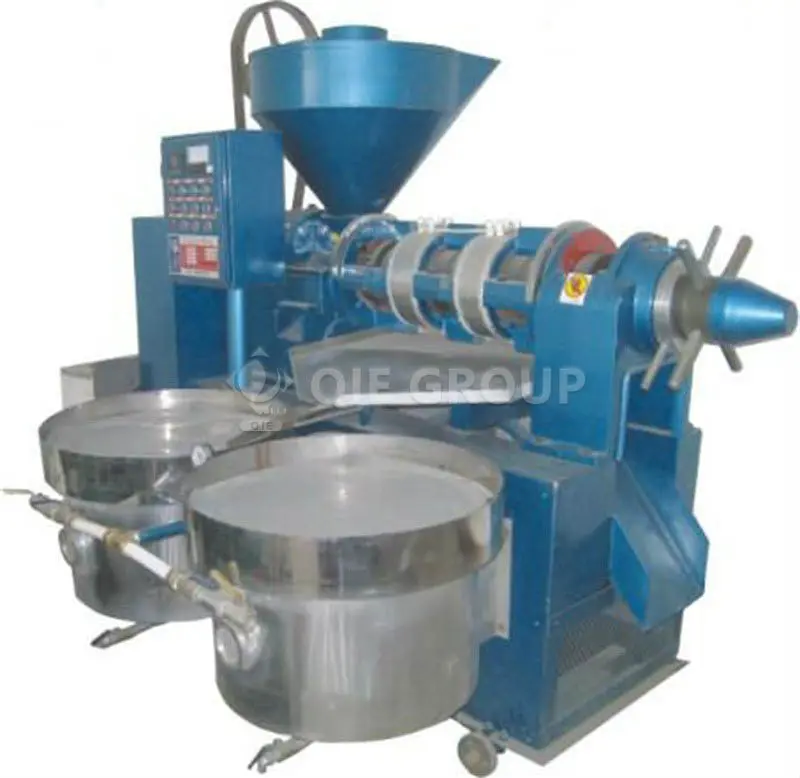

| YZYX130WZ | 8~10 | ≤8.0 | 30~40 | 15 | 1.5 | 3.6 | 2005×1610×2010 | 1280 |  |

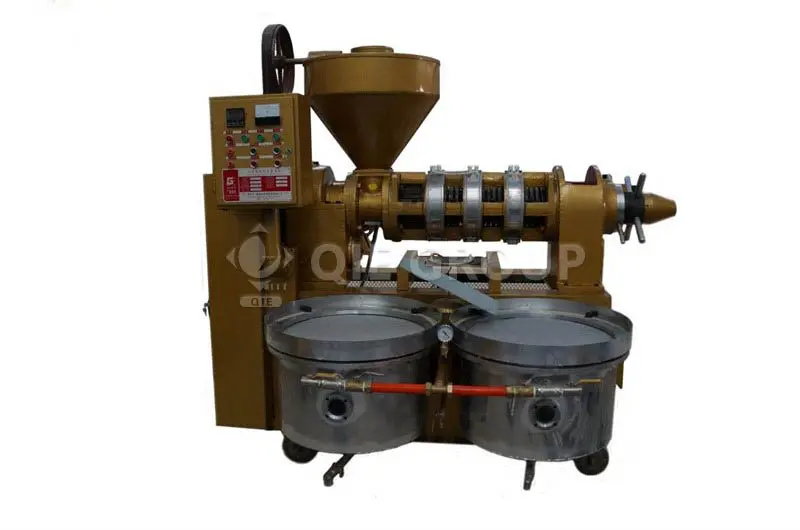

| YZYX140WZ | 9~11 | ≤8.0 | 30~44 | 18.5 | 2.2 | 3.6 | 2005×1610×2010 | 1400 |  |
“Since the introduction of the oil press with filtration system, our production line has become smoother and more efficient, and the quality of the oil produced is better than before.”
“This machine is very suitable for small and medium-sized factories, meeting daily production needs without wasting resources.”
Choosing this oil press with a filtration system will make your oil mill more efficient, worry-free, and safer. We provide installation and commissioning, operator training, technical guidance, and comprehensive after-sales service to ensure long-term, stable operation. Contact us today to ensure every drop of oil is high-quality and every hour of production is efficient!
